Double Wire Twist Barbed Wire Mesh Weaving Machine
Ordinary barbed wire mesh machine generally refers to the CS - type A double strands of barbed wire machine,
double strands of barbed wire machine by wire and wire twisting connection of part of the second, four wire plate.
And form A complete set, the machine is mainly suitable for the production of various strands of barbed wire mesh,
the use of material should comply with the stability, flexible operation and reliable, and is currently the only
domestic production of barbed wire mesh equipment.
Double Wire Twist Barbed Wire Mesh Weaving Machine Performance
Barbed wire with strong anticorrosion performance, long service life, good defense, and other characteristics,
suitable for factory, private villas, residential buildings on the ground floor, construction site, Banks, prisons,
print works, military machine, bungalow.

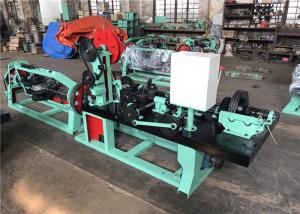

Double Wire Twist Barbed Wire Mesh Weaving Machine picture & specification
| Type | CS-A Normal double twisted barbed wire machine |
| Motor(kw) | 3 |
| Voltage(V) | 380 |
| Outside dimension(mm) | Main :2000*1200*1400 Auxiliary:2000*650*800 |
| Weight(kg) | 1000 |
| Main wire diameter(mm) | 2.0-3.0 |
| Barb wire diameter(mm) | 1.8-2.4 |
| Wire tensile strength(N/mm²) | 400—600 |
| Barb distance(inch) | 3’(7.5cm) | 4’(10cm) | 5’(12.5cm) | 6’(15cm) |
| Capacity(m/h) | 675 | 900 | 1125 | 1350 |
| Capacity(kg/h) | 120 (main wire 2.8mm, barbed wire 2.2mm as example) |
| Weight | 1Ton |
Single twisted barbed wire machine picture and specification
| Type | CS-B single twisted barbed wire machine |
| Motor(kw) | 3 |
| Voltage(V) | 380 |
| Outside dimension(mm) | 3000*1200*1500 |
| Weight(kg) | 800 |
| Main wire diameter(mm) | 2.0-3.2 |
| Barb wire diameter(mm) | 1.8-2.4 |
| Wire tensile strength(N/mm²) | 400—600 |
| Barb distance(inch) | 3’(7.5cm) | 4’(10cm) | 5’(12.5cm) | 6’(15cm) |
| Capacity(m/h) | 450 | 600 | 750 | 900 |
| Capacity(kg/h) | 60 (main wire 2.8mm, barb wire 2.2mm as sample) |
Reverse twisted barbed wire machine picture and specification
| Type | CS-C reverse twisted barbed wire making machine |
| Motor(kw) | 3 |
| Voltage(V) | 380 |
| Outside dimension(mm) | 3200*1200*1500 |
| Weight(kg) | 800 |
| Main wire diameter(mm) | 1.6-2.8 |
| Barb wire diameter(mm) | 1.6-2.4 |
| Wire tensile strength(N/mm²) | 1100—1200 (1.6 - 1.8 mm) 800—900 (1.8—2.6mm) 400—500 (2.7—2.8mm) |
| Barb distance(inch) | 3’(7.5cm) | 4’(10cm) | 5’(12.5cm) | 6’(15cm) |
| Capacity(m/h) | 450 | 600 | 750 | 900 |
| Capacity(kg/h) | 30 (main wire 1.6mm, barb wire 1.6mm as sample) |
| Weight | 750kg |
Barbed wire making machine theory
Motor drive the gear to make wire materials to be twisted
Barbed wire making machine After sales service
1. Test the machine before shipment
2. Guarantee time: one year since machine was at buyer's factory but within 18 months against B/L date
3. Within guarantee time, if any components are broken under normal condition, we can change for free
4. We can send our best technician to buyer’s factory for installation, debugging and training
5. Buyer need to undertake double-way air tickets, Visa, Worker salary USD120.0/ Day, Accommodations
Company Introduction
Hebei OLT wire mesh machine company with 55 employees, 9000 square meters workshop,
more than 30 years experience in metal wire mesh fence. All these help us to be the leading manufacturer
in Metal wire Mesh and wire mesh machinery field, we are mainly supplying wire drawing machine,
galvanized wire production line, chain link fence machine, wire mesh welding machine,
razor barbed wire making machines, etc.
We can supply 100% right and reasonable suggestions for our new customers.
Welcome to visit our factory to enable our mutual cooperation.
