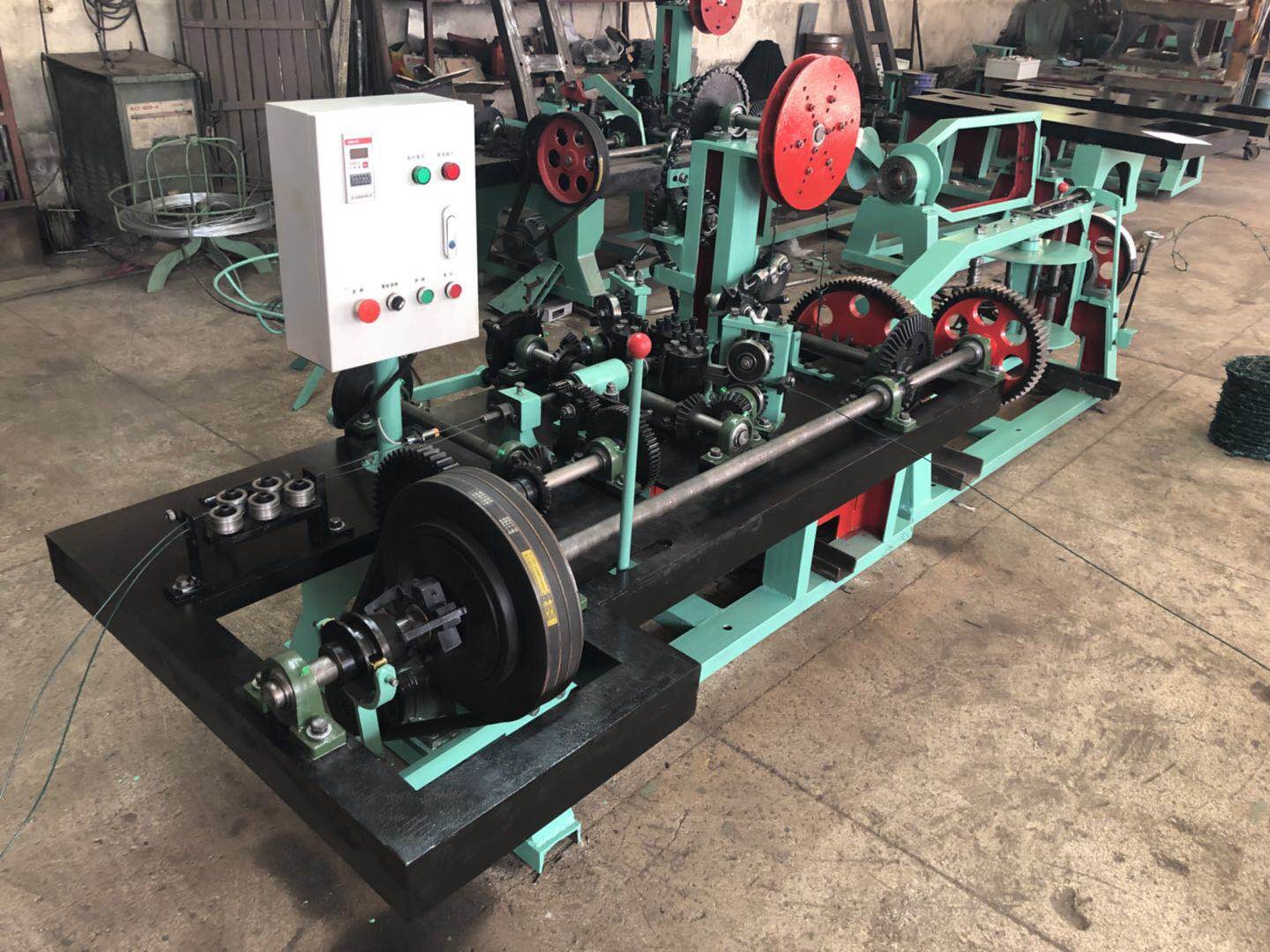

60 kg/h Automatic Twisted Barbed Wire Mesh Making Machine For India Customer
1. Barbed wire machine information:
Barbed wire making machine is designed to produce hot dip or electro galvanized, barbed steel wires with structure of one Single Barbs. The machine is of horizontal design, consisting of two parts, assembled together at the middle/in tandem. It is safe and reliable in operation, capable of turning out high quality products with consistency.
CS-A: Normal double twisted barbed wire machine
The power is 3 kw, voltage is 380V/50HZ (can be customized), main machine size is 2000 mm*1200mm*1400mm,auxiliary is 2000mm *650 mm*800mm, can produce barbed wire with main wire 2.0mm-3.0mm, barb wire 1.8mm-2.4mm. More details, please check the following table:
| Model | Normal double twisted barbed wire machine |
| Power(KW) | 2.2 |
| Voltage (V) | 380V |
| Size(mm) | Main: 2000 *1200*1400 Auxiliary: 2000 *650*800 |
| Weight(kg) | 1000 |
| Main wire diameter(mm) | 2.0-3.0mm |
| Barb wire diameter(mm) | 1.8-2.4mm |
| Iron wire streching resistance(N/MM2) | 400-600 |
| Barb wire distance(inch) | 3' | 5 |
| Production(M/h) | 675 | 1125 |
| Production(kg/h) | 120 (main wire 2.8mm. barb wire 2.2mm) |
CS-B: Single twisted barbed wire machine:
This type machine power is 3kw, voltage is 380V/50HZ, machine size 2700mm*1200mm*1500mm, weight is 800kg, main wire diameter 2.2-3.0mm, barb wire diameter can be 1.8-2.4mm, more details, please check the following table.
| Model | Single twisted barbed wire machine |
| Power(KW) | 3 |
| Voltage(V) | 380V/50HZ |
| Size(mm) | 2700 *1200*1500 |
| Weight(KG) | 800 |
| Main wire dia (mm) | 2.2-3.0 |
| Barb wire dia(mm) | 1.8-2.4 |
| Iron wire stretching (N/MM2) | 400-600 |
| Barb distance(inch) | 4' | 5' |
| Production(m/h) | 600 | 780 |
| Production(kg) | 60 (main wire -2.8mm, barb wire-2.2mm) |
2. Barbed wire machine characteristics:
High working speed and efficiency ,can produce barbed wire with different wire diameter, different wire materials-(galvanized wire and pvc coated wire)
3. Barbed wire machine theory
Motor drive the gear to make wire materials to be twisted.
4. FAQ
Q: How many years are your company engaged in the wire mesh machines?
A: More than 25 years. We have our own technology develop department and testing deparment.
Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 100 countries before. They are very experience
Q: What's the guarantee time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply the CE certificate, Form E, passport, SGS report etc, your customs clearance will be no problem.
