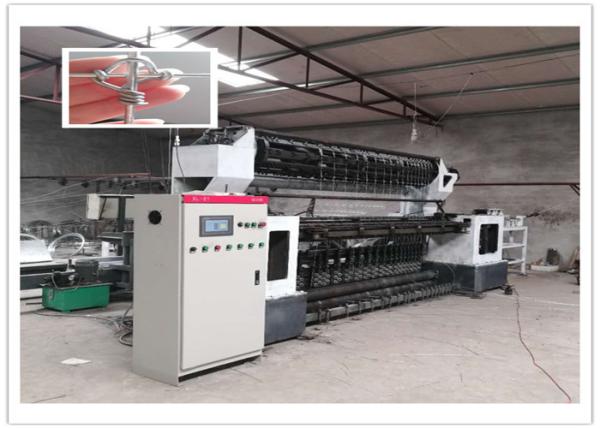

2400mm Width Fixed Knot Grassland Animal Field Fence Machine
The fixed knot fence machine,grassland fence machine is also called field fence machine,hinge joint fence machine or cattle fence machine,farm fence machine.This machine can produce grassland fence which is widely used for preventing environmental balance,preventing landslide and used as livestock fence.Our machine adopts sophisticated computer control,advance manufacturing technique.It have the featurers of novelty,high degree of automation, reliaility and operational safety, long life and easy operation.
New Design PLC Automatic Fixed Knot Grip Lock Fence Machine parameter:
| Model | ZC-2440 |
| Maximum Fence Width | 2.438M |
| Maximum Number of Line Wires | 20line |
| Line wire spacings | Minimum 76mm (3'')can be increased by additional increments of 12.5mm(1/2'') or multiples of 12.5mm(1/2'') |
| Stay wire spacings | 150mm,300mm,and450mm(6'',12'',and18) |
| Line wire size | 2.4mm-2.6mm |
| Stay wire size | 2.4mm-2.6mm |
| Knot wire size | 2.0mm-2.24mm |
| Length of roll | Up to 220m(660ft) |
| Motion system | Controlled vector and servo drives(MIGE ISO9001-2008) |
| PLC control of machine functions | Panasonic |
| Motion supply voltage | 3 phase 380V AC 50/60HZ |
| Control supply voltage | DC 24V |
| Machine weight | 7200kg |
| Main body size | 4800*6800*2250 |
Our advantage:
| Our Advantages | 1. Special hole for line wire feeding, more flexible and tidy.
|
| 2. Straightening rollers for weft wires, finished weft wire more straightened.
|
| 3. Instead of groove rail, we adopt linear rail to push cross wire, less resistance, moving fast. |
| 4. Cutter is made of hardened mold steel, HRC60-65, life is at least one year.
|
| 5. Pneumatic turning weft wire, more swift and flexible, to ensure high working speed.
|
| 6. Twisted head is made of hardened mold steel, HRC28, life is at least one year.
|
| 7. Weft wire distance can be adjustable 50-500mm with the special device.
|
| 8. Grid counter to record weaving roll length.
|
| 9. Mesh roller is easy to discharge and install.
|
| 10. Instead of electro-magnetic motor, we adopt frequency-variable motor controlled by inverter, adjustable working speed, saving 30% energy. |
| 11. We adopt China top brand reducer, no oil leaking, life is at least 5 years.
|
New Design PLC Automatic Fixed Knot Grip Lock Fence Machine application:

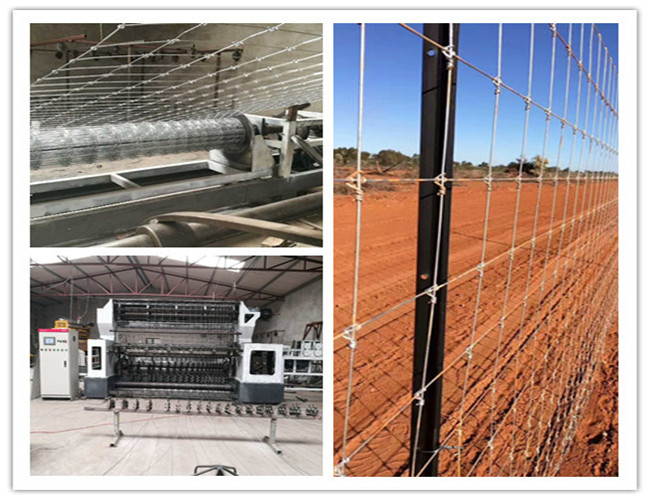

1:Use of grassland fence network:
①grassland construction in pastoral areas, can build grassland and carry out fixed-point grazing, and graze in separate columns. It can facilitate the planned use of grassland resources, effectively improve grassland utilization and grazing efficiency, prevent grassland degradation and protect the natural environment. At the same tim
②it is also suitable for establishing family farms with farmers and herdsmen to set up border guards, farmland fences, forest nurseries, hillsides for afforestation, tourist areas and hunting areas, isolation and maintenance of construction sites.
2:The grassland fence (Niulan Net) is a widely used
ecological balance in the Americas of Europe to prevent landslides and animal husbandry fences. Especially in the rainy mountainous areas,
a layer of sunscreen 120g nylon woven cloth is used to block the muddy sand outflow. Therefore, it has developed rapidly in recent years.
FAQ
Q:Where is your factory located?
A: Our factory is located in Anping county, Hebei Province.Our nearest international airport is Beijing.We can pick you up from Shi Jia Zhuang airport or train station.
Q:How many years your factory established and how many workers you have
A:Our factory established nearly 30 years.And we have about 35 workers in our factory now.
Q:What is your machine guarantee time?
A:One year since machine was at buyer's factory but within 18 months against B/L date.But we supply whole-life on line free after sales service.
Q: How many years are your company engaged in the wire mesh machines?
A: More than 30 years. We have our own technology develop department and testing deparment.
