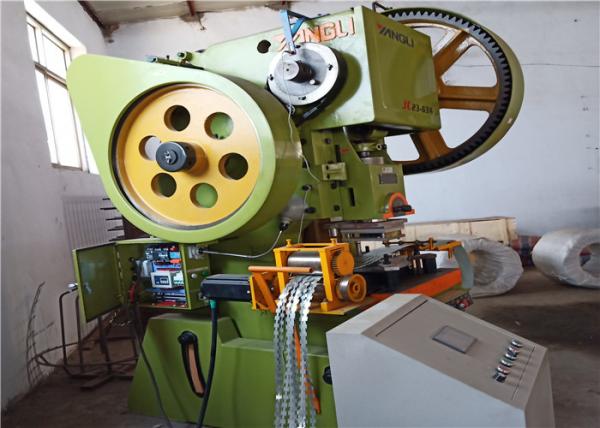

Concertina Blade 0.6mm Razor Wire Making Machine

Brand Name : OLT

Model Number : OLT-RW5

Certification : ISO9001:2008

Place of Origin : CHINA

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 10sets per month

Delivery Time : 30working days

Packaging Details : nude package for full container loading,spare parts with wooden box

Product name : Concertina Blade Razor Wire Making Machine

Wire diameters : customized

sheet thickness : 0.45mm-0.6mm

Razor type : BTO12/22/30 CBT-60/65

After-sales service provided : Engineers available to service machinery overseas

Auxiliary equipment : 2sets inner wire covering machine

applicattion : industrial/mining enterprises/prison/security fence

advantage : easy operation,high capacity

style : cross type,welding type,flat type

Contact Now

Concertina Blade Razor Wire Making Machine

Concertina blade razor wire making machine introduction :

The blade barbed wire machine, also known as the blade barbed wire machine, is a special machine for producing blade barbed wire, which is composed of a feeding machine, a punching machine, a receiving machine and a wire wrapping machine. The blade barbed wire is mainly used for various security isolation of military facilities, communication stations, power distribution stations, border lines, prisons, dumps, community protection, schools, factories, farms and so on.

Razor wire making machine specification:

Model	40T	60T	Coiling machine
Voltage	380V/50HZ or according to client's voltage
Power	2.2kw	7.5kw	1.5kw
Producing speed	220- 280m	220- 280m	2tons / 8hours
Pressure	25ton or 40ton	60ton	-
Thihckness of sheet	0.5± 0.05mm	0.5± 0.05mm	-
Diameter of inner wire	-	-	2.5mm
Materil of sheet	galvanized or ss	galvanized or ss	-

Concertina blade fence razor wire making machine classification:

According to different installation methods, the blade barbed wire can be divided into: (snake-belt type) spiral sprayed blade barbed wire, linear sprayed blade barbed wire, flat sprayed blade barbed wire, sprayed blade barbed wire welded wire mesh and so on.
The blade barbed wire is roughly divided into three types: spiral, straight, and spiral cross.

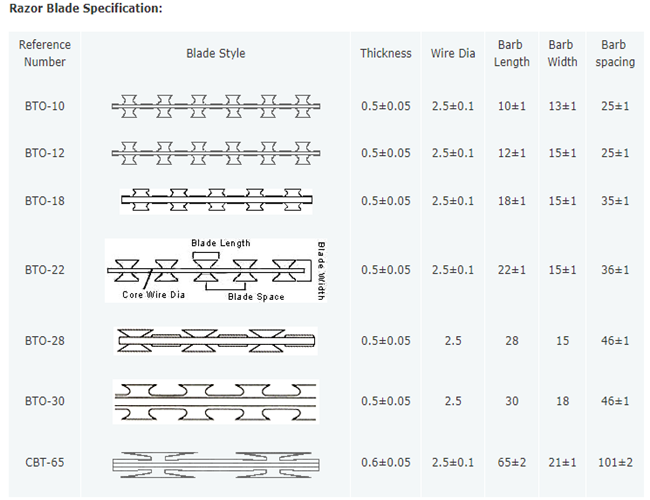

Specifications: BTO-10, BTO-15, BTO-18, BTO-22, BTO-28, BTO-30, CBT-60, CBT-65 Packing: moisture-proof paper, woven bag strip, other packaging can be packed according to customer requirements.

Concertina blade fence razor wire making machine uses :

Uses

1. Automatically complete production line, operator friendly and higher speed

2. Automatic de-coiler holding max. 2tons steel sheet; its motor made of copper leads

3. Punch machine adopts step motor to feed steel sheet fast and smooth

4. Punching machine adopts high quality bush, not easy to burn down

5. Punch machine adopts button switches and foot switch, easy to operate

Concertina blade fence razor wire making machine attention :

The blade barbed wire is a steel wire rope with a small blade, which is usually used to prevent people or animals from crossing a certain boundary. The blade of the barbed wire is very sharp, and can even cause excessive bleeding in the wound and cause death. The picture shows the blade barbed wire. Generally used in airport borders, company outer walls and other places to prevent property damage caused by accidental access to the site

Razor barbed wire (razor barbed wire), also known as blade barbed wire and blade barbed wire, is a new type of protective net. The blade barbed wire has excellent characteristics such as beauty, economy and practicality, good anti-blocking effect, and convenient construction. At present, the blade barbed wire has been widely used in industrial and mining enterprises, garden apartments, border posts, military fields, prisons, detention centers, and governments in many countries. Buildings and security facilities in other countries.
