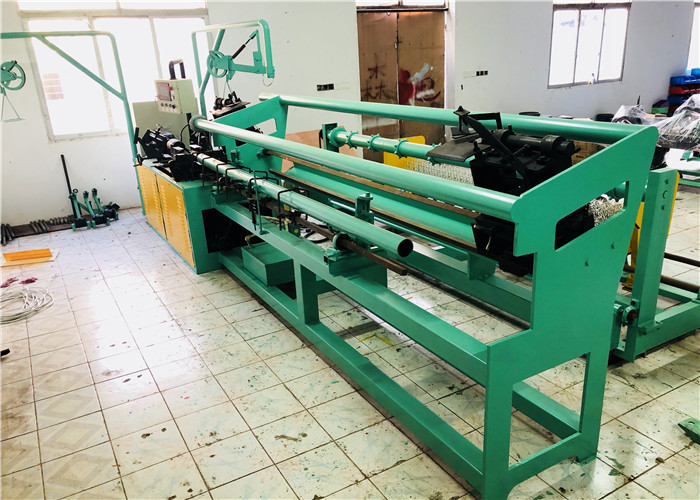

25-100mm Double Wire Feeding Chain Link Fence Machine
1. 25-100mm Double Wire Feeding Chain Link Fence Machine Description:
Full automatic chain link fence machine can produce all kinds of electro-galvanized, hot-dip galvanized and
PVC coated diamond mesh .
2. 25-100mm Double Wire Feeding Chain Link Fence Machine Parameter:
| Mesh size | 25-100mm |
| Mesh Width | 3m |
| Wire diameter | 2-4mm |
| Border wire treatment | knuckle+knuckle,knuckle+twist,twist+twist |
| Raw material | Galvanized wire, PVC coated wire, etc. |
| Mesh side | Knuckled and twisted, both knuckled, both twisted |
| Size(L*W*H) | Main machine: 5700mm×1430 mm×1800 mm |
| Motor | Servo motor -4.5KW |
| Weight | 3.6T |
3. Chain link wire mesh fence making machine characteristic:
1. Small occupied area.
2. Automatic feeding wire,cutting wire,knuckle(twist)edge,roll mesh.
3. Low raw material consumption
4. One worker operates more machines and save manpower and time.
4.Chain link wire mesh fence making machine part :

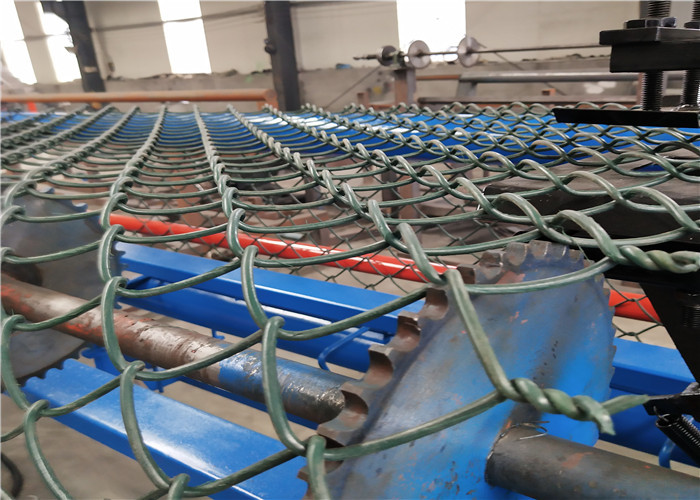

The weaving mesh part as follows:
·Spiral forming is realized by a motor controlled by an electronic system, allowing the following operations:
- Adjust the spiral formation speed according to different types of mesh optimization
- Blade positioning
- Spiral count to determine the width of the net
- Grid count to determine the length of the net
· Centralized lubrication, electric pump driven by button.
· The safety device stops the machine if the spiral winding is blocked or the raw material is insufficient.
5. Chain link fence machine performance:
1. Designed for continuous working system as 24 hours.
2. Double wire input
3. Two sets mold for free
4. Long using time for mold
5. Low tolerance for mold +/-1mm
6. Wire fencing capacity(speed):120m2/hour-(as result of tests 70mm mesh size)
7. Between 30mm-120mm of mesh size wire fencing
8. Can be used with kinds of galvanized or pvc wire
